SHEAR MACHINE SCR
With a unique operating principle, SCR shears are distinguished by their dynamic structural behavior and cutting quality. The mechanical system offers a high quality cut without vibration, thus increasing the machine’s useful life.
Better cutting, longer lifespan.
Vertical cutting is the most effective and precise system compared to alternative methods. Here, the cutting angle can be adjusted according to the type of material and sheet thickness.
FEATURES
VERTICAL CUTTING
This system ensures an even distribution of force along the entire length, resulting in smooth, vibration-free cutting.
AUTOMATIC VARIABLE ANGLE
To minimize the “twisting” effect, the SCR shear allows the cutting angle to be adjusted according to the sheet thickness. This adjustment is fully automated.
RAE SYSTEM
During cutting, the back gauge automatically retracts to avoid collisions with the sheet metal.
VERSATILITY
With a cutting capacity ranging from 4 mm to 40 mm in thickness and from 1.2 m to 8 m in length, the SCR shear offers a wide range of solutions and automation options.

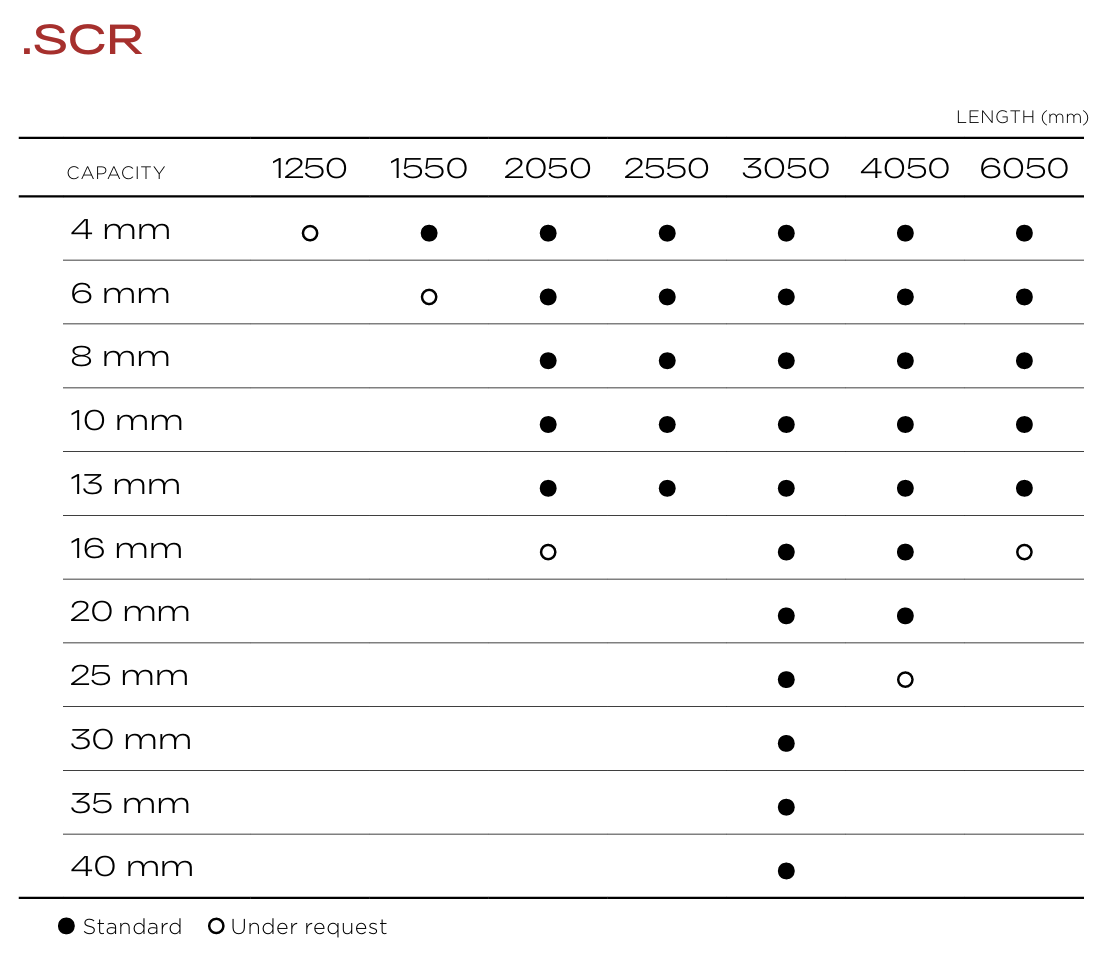

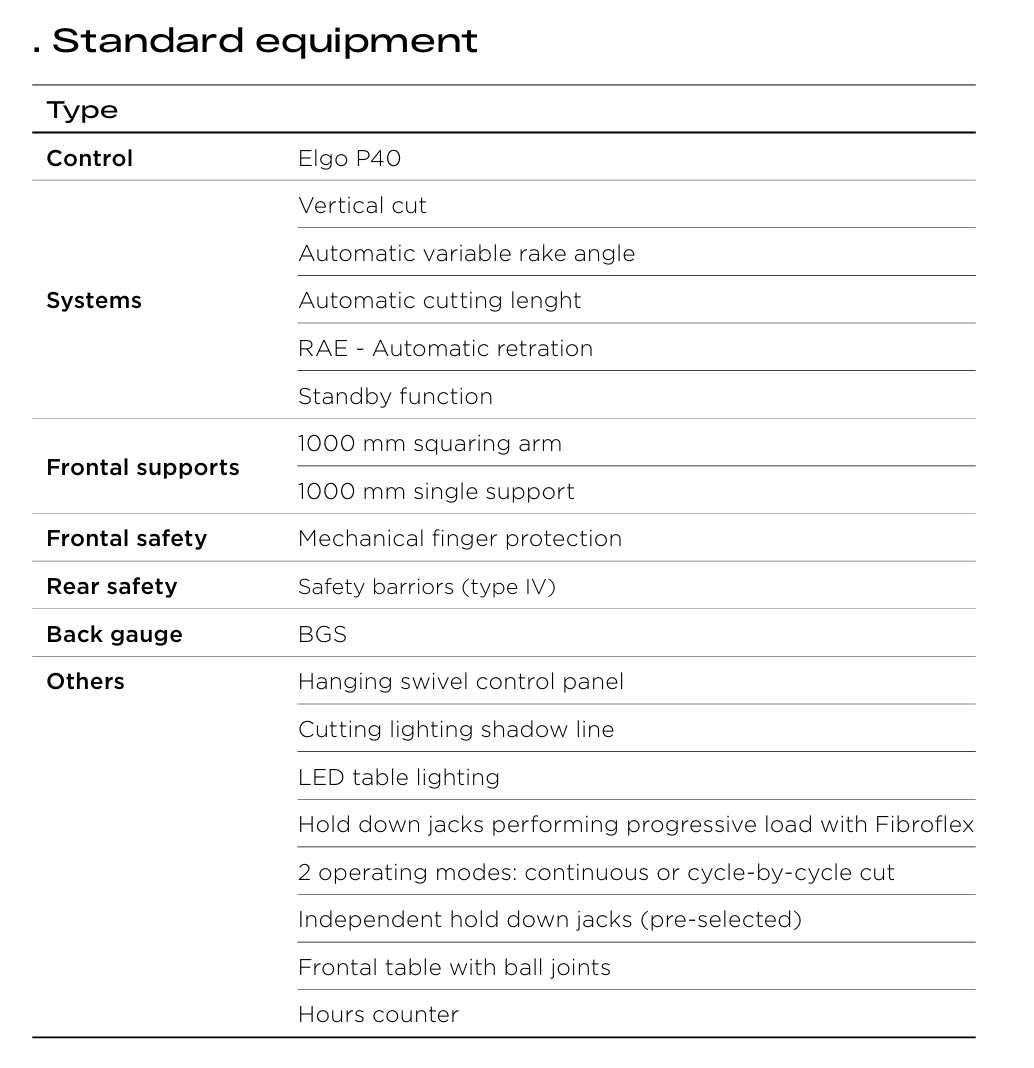

TECHNICAL DETAILS
